ICF On-Screen Profile — Visible Range Volume Profile for NinjaTrader

A visible range volume profile builds the profile from the bars currently visible in the chart viewport. In NinjaTrader, the native Order Flow Volume Profile supports this through Composite → Visible Screen Range: the range runs from the first bar in view to the last bar in view, so panning or zooming changes the profiled range.

If that native workflow already gives you the display and resolution you need, it may be all you need. ICF On-Screen Profile is ICF's implementation of the same visible-range / visible-screen-range profiling job for NinjaTrader, intended for traders who need additional workflow or analysis layers documented in the ICF Volume Profile Pack.

In NinjaTrader, Visible Screen Range is a range-selection rule. The profile uses the first bar currently in view through the last bar currently in view. Change the viewport and you change the range being profiled.

That makes it useful when your question is, “What does the volume distribution look like across the exact section of chart I am looking at now?” You can zoom in for a tighter context or zoom out for a broader one without manually redefining start and end points each time.

The important limitation is that the range is viewport-driven. It is not a fixed historical anchor, and it is not a repeating time schedule. It also does not turn the profile into a prediction method; it only changes which chart data is included in the calculation.

For the native route, use Order Flow Volume Profile as an indicator and configure the profile period for the visible screen:

1. Add Order Flow Volume Profile to the chart.
2. Set Profile period to Composite.
3. Set Compose by to Visible Screen Range.
4. Choose Minute or Tick resolution based on the display mode and data detail you need.
5. Make sure the chart has enough source data loaded for the bars you expect the profile to include.

Once Visible Screen Range is selected, the profile follows the first and last bars in the current view. Panning left or right changes those bounds. Zooming changes how much history is visible, so it can also change the resulting profile.

Order Flow+ access is plan-dependent; verify current NinjaTrader terms.

Broader questions about profile periods, range choices, and tool selection belong in ICF's general NinjaTrader Volume Profile guidance rather than turning this page into a full Volume Profile reference.

Range selection tells NinjaTrader which bars to profile. Resolution and loaded history affect how that profile is built.

• Minute resolution: lighter and faster, but approximate in NinjaTrader's implementation. One-minute bar volume is distributed through the bar's price range rather than reconstructed from one-tick records.
• Tick resolution: uses one-tick data and is more resource-intensive. Native Buy/Sell and Delta display modes require Tick resolution.
• Loaded chart history matters: data cannot be profiled if it is not available on the chart. If you zoom out and expect older bars to contribute, you may need to increase Days to load.
• Trading Hours is a filter, not a data source: a Trading Hours setting can filter the chart data that already exists, but it does not create missing historical data.

These are tool-specific NinjaTrader behaviors. They should not be generalized into claims that every Volume Profile implementation requires the same data configuration.

Stay native when the native job already matches your requirement

The native path is a strong fit when you want a viewport-following profile, already have the required Order Flow+ access, and the native display/resolution options cover the analysis you actually use.

That is especially true if your main requirement is simply: “profile the bars currently on screen, then update the range as I pan or zoom.” Adding a third-party tool does not improve that decision by itself.

Investigate ICF when you can name the missing workflow

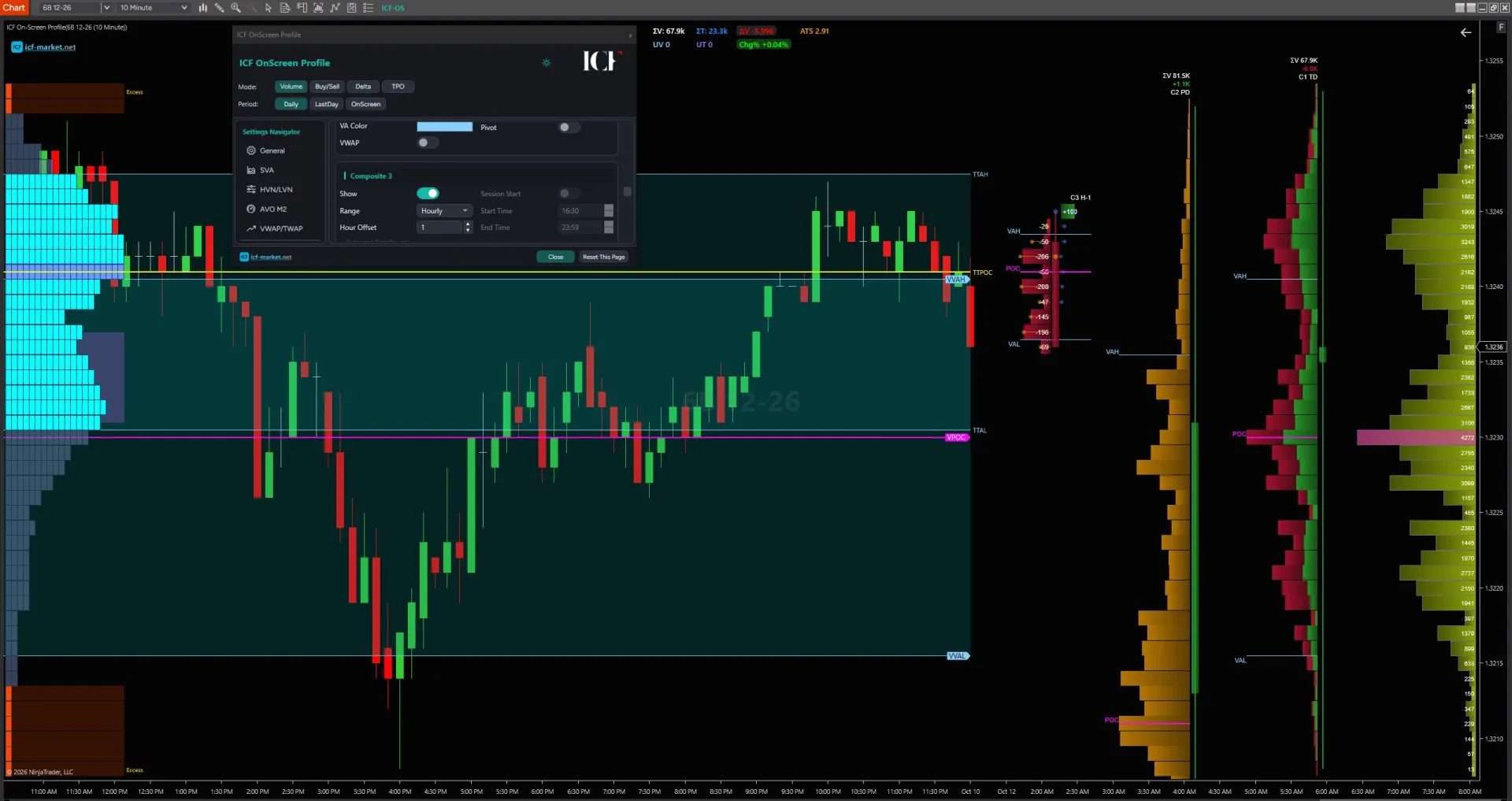

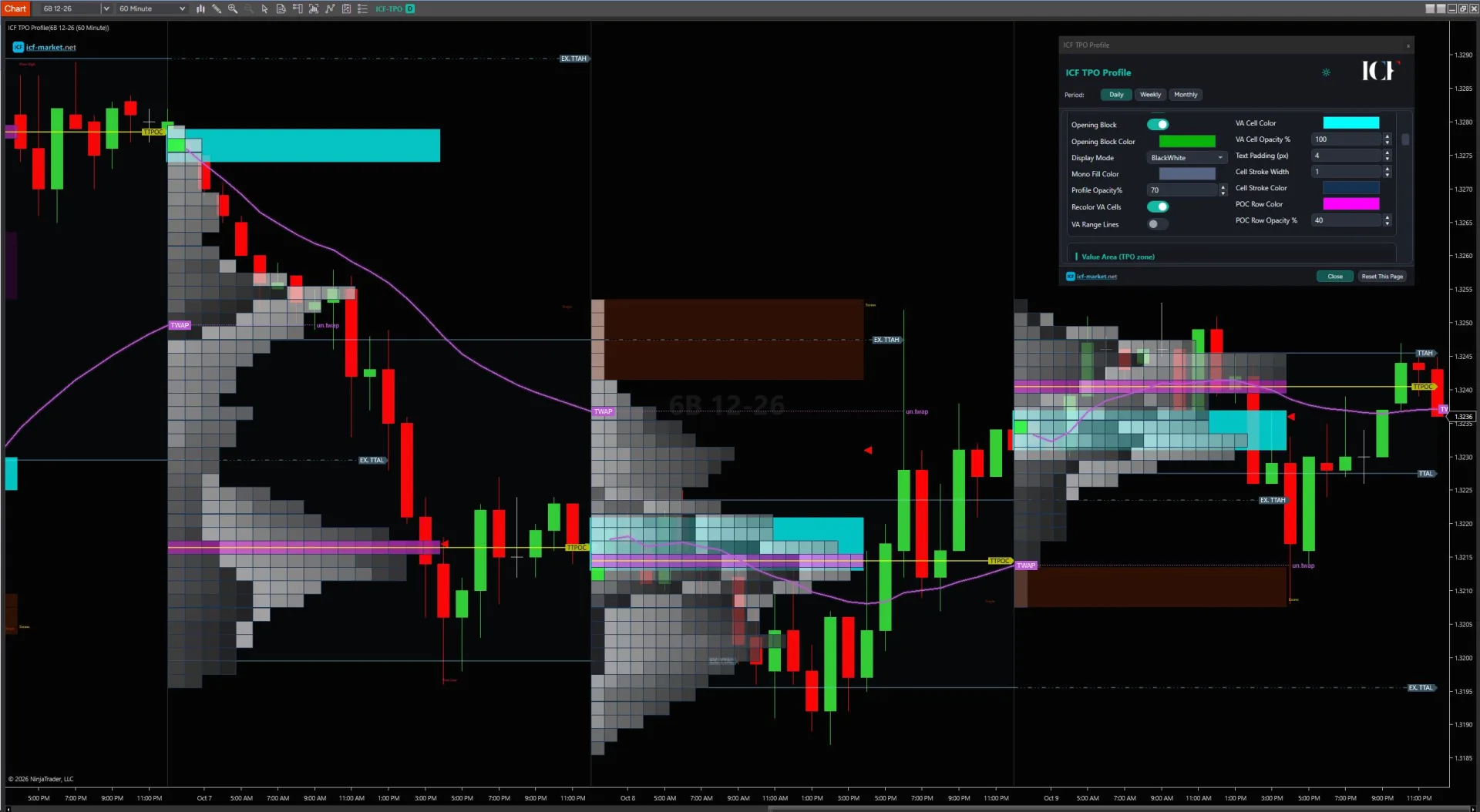

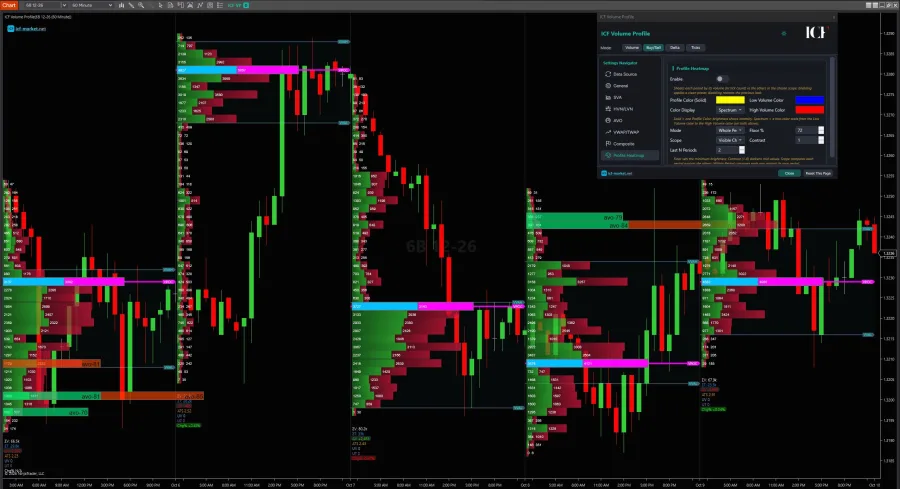

ICF On-Screen Profile follows the visible chart range and rebuilds as you scroll and zoom. In the current ICF product specification, it is part of the ICF Volume Profile Pack and supports OnScreen, Daily, and LastDay period modes plus Volume, Buy/Sell, Delta, and TPO display modes.

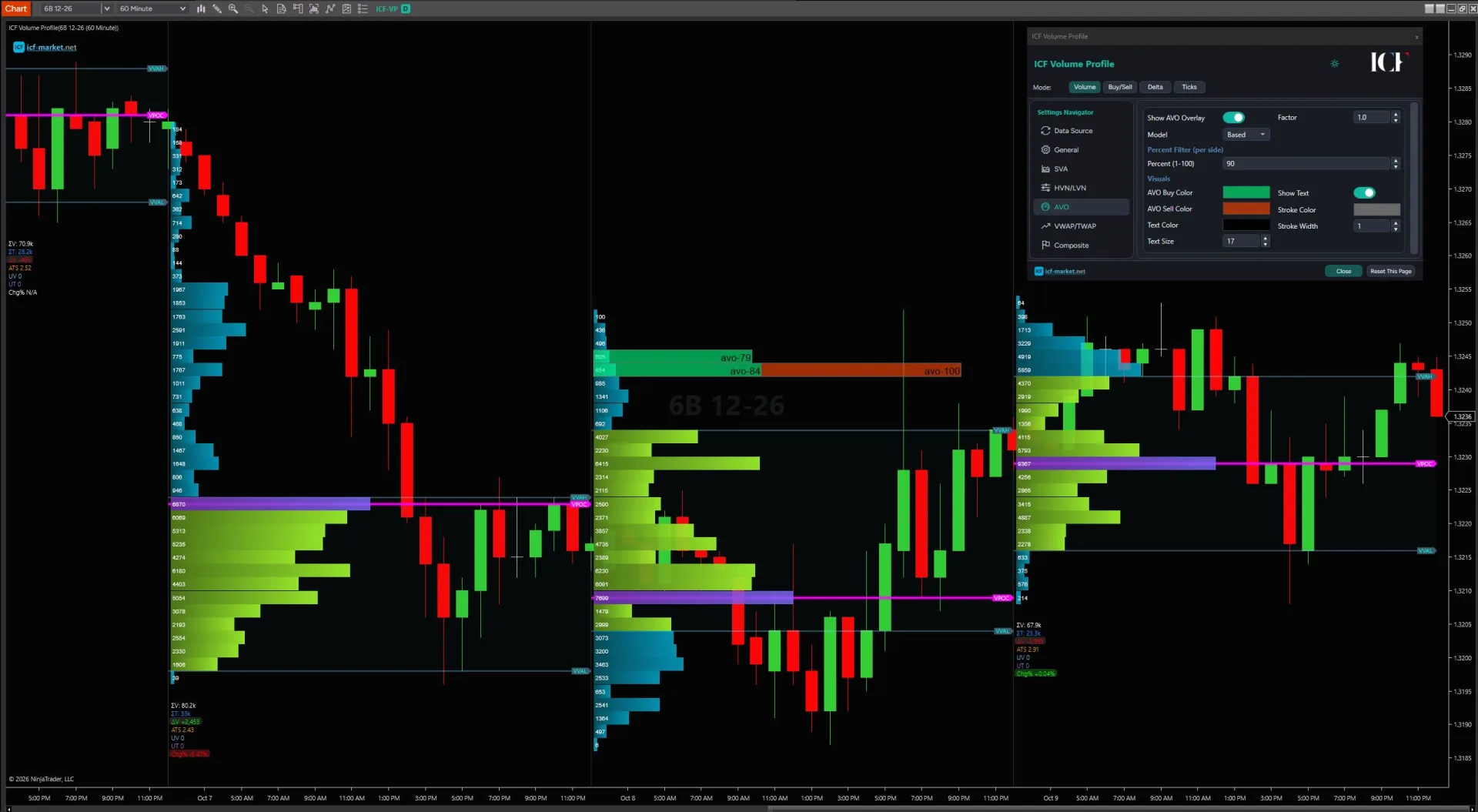

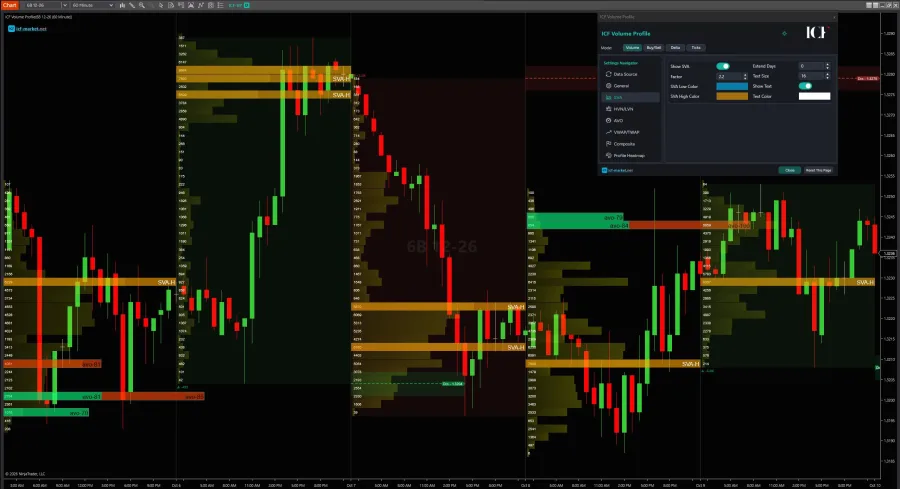

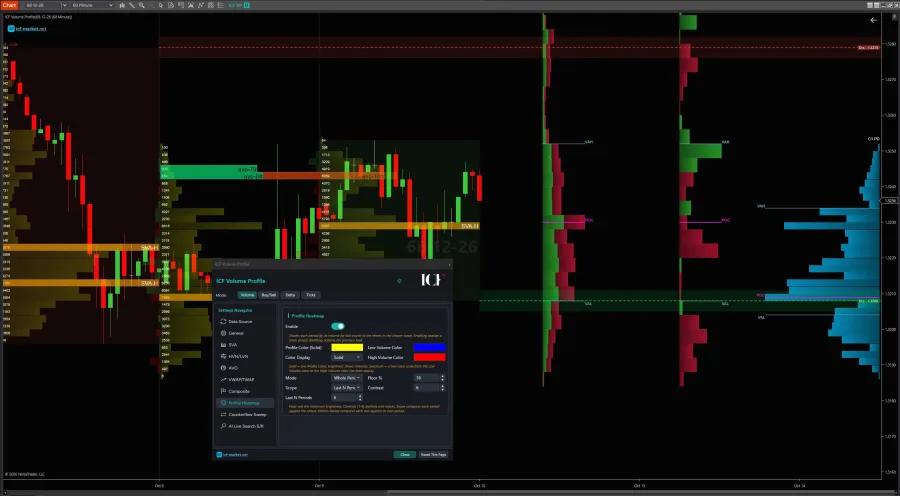

The current product page also documents additional profile-analysis and display layers across the pack, including items such as value-area recoloring, SVA, HVN/LVN, AVO, VWAP/TWAP, composites, pivots, and per-range statistics. If one of those capabilities is the reason you are considering ICF, verify its exact scope for the On-Screen workflow on the current product page rather than assuming every pack feature applies identically to every profile mode.

The current ICF product specification lists NinjaTrader 8 or 8.1, Windows, and tick data from the feed as requirements.

The decision is therefore not “native versus paid” in the abstract. It is whether a verified ICF capability solves a concrete requirement that remains after you test the native Visible Screen Range workflow.

For a NinjaTrader visible range volume profile, start with the native Visible Screen Range path if you have access to it. It directly solves the viewport-following job and gives you a clean baseline for deciding whether anything is missing.

If your real question expands into period selection, profile types, or broader Volume Profile tooling, move to ICF's general NinjaTrader Volume Profile guidance. If you can name an ICF-specific workflow requirement, review the current ICF Volume Profile Pack specification before deciding.

The useful sequence is simple: choose the correct range behavior, confirm the data/resolution requirement, then add tooling only when a specific workflow justifies it.

For broader range, period, and tool-selection context, use ICF's general NinjaTrader Volume Profile guidance.
